Smartdop XT
Smartdop XT with Smart-XT-Link
Features
(Catalog Download)
- One button operation for up to either 14-site or 6-site automatic blood pressure measurements by oscillometry & PPG for ABI and TBI.
- Up to either 14-site or 6-site semi-automatic blood pressure measurements by Doppler & PPG for ABI and TBI with Doppler.
- PPG Venous reflux study with PPG probe.
- All tests controlled & stored by computer with Smart-XT-Link for Windows®.
- Optional probes: Doppler probe with 4/5/8 MHz.
Screenshots of Smart-XT-Link
Click to see the original screenshots of the software.
| Testing module | Thumbnail (SD-XT14) |
Thumbnail (SD-XT6) |
Note |
|---|---|---|---|
| Main Screen |  |
 |
|

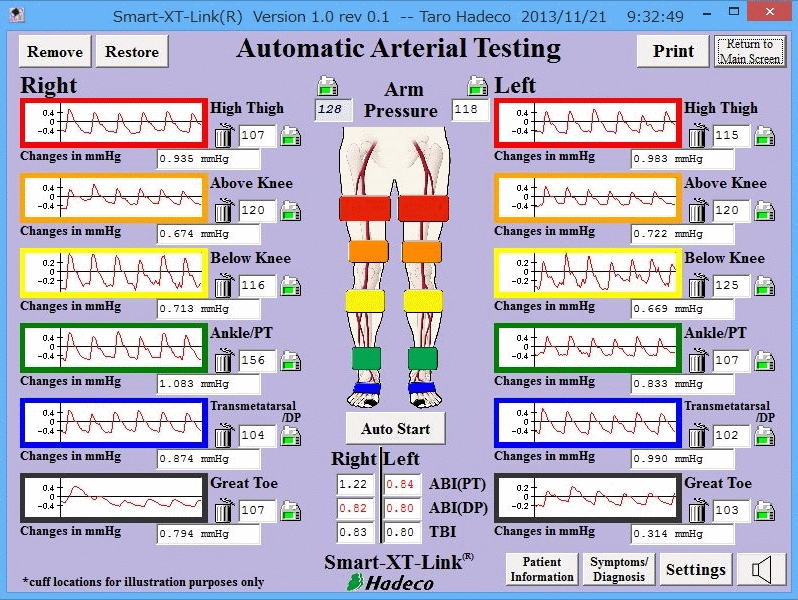

| Automatic Arterial Testing Screen |  |
 |
SD-XT6: Segmental pressure testing for up to 14 sites is available if desired. |
| Doppler Arterial Testing Screen |  |
 |
|
| PPG Venous Reflux Screen |  |
 |
|
| Foot Temperature Screen |  |
 |
|
| Custom Screen |  |
N/A | Available on SD-XT14 only. |
Required system for Smart-XT-Link
| OS | Windows® 11(Except Tablet PC) |
|---|---|
| CPU | Celeron 1GHz or more |
| RAM | 1Gbyte or more |
| HDD | 50MB or more |
| Display | SVGA(800 x 600 dots) or more, 256 colors or more |
