Vascular Link Software
Smart-V-Link for Windows® Version 5
New features for Version 5
- New “Data Comparison Manager”, DCM hereafter, provides you today’s and previous test results quickly.
- DCM shows a file list of the 3 newest test data with the same ID automatically for easy operation. Advanced search also available.
- DCM displays up to 32 waveforms as well as numerical data. The test results can be printed out either entirely or partially.
Common features
- ABI, TBI and arterial blood flow velocity
- Fully auto-gain controlled waveform by computer
- Real-time vascular waveform display
- Data storage for future reference
- Standardized testing modules for easy operation and documentation
- Auto-testing with SD-30EX to simplify entire testing for ABI , PV, & Lower screens. =>Click here.
- Auto-freeze/decision/save for expert mode. =>Click here.
- Waveform data download for Dopplers supporting download capability
- Customized screen with suitable names & number of site
- Site Screen for registering site & test names for Doppler(s)*1 to allow you to perform SVL testing without connecting computer.
- Volume flow calculations available by entering vessel diameter.
- Easy to compare at a glance up to 32 waveforms as well as numerical data.
*1: Bidop 7, Latest Smartdop 45 as of Dec, 2014, and Latest ES-100V3 as of Feb, 2015.
Screenshots
Click to see the original screenshots.
| Testing module | Thumbnail | Note |
|---|---|---|
| Main Screen |  |
|

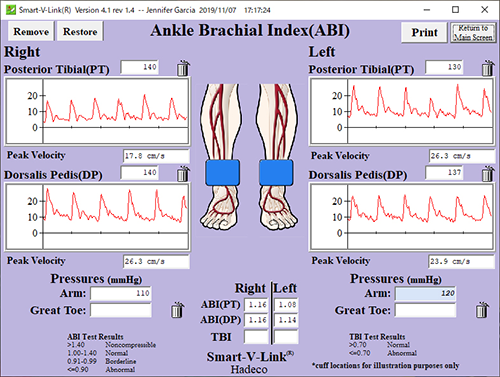

| Ankle Brachial Index(ABI) |  |
ABI/TBI interpretation complied with ACC/AHA Guidelines(2005). |
| PPG Arterial |  |
|

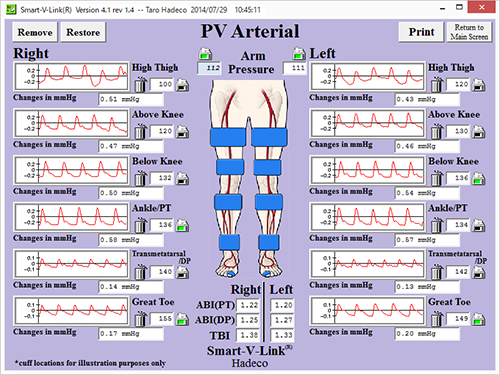

| PV Arterial |  |
Only available for Smartdop 30EX. |

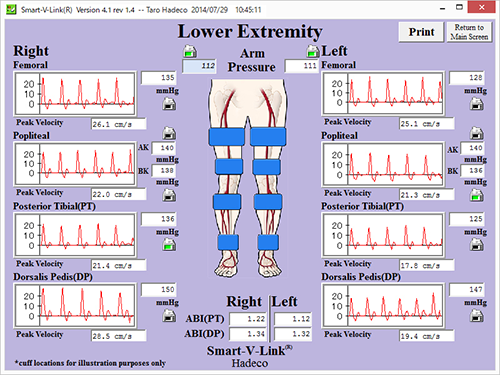

| Lower Extremity Segmental |  |
|

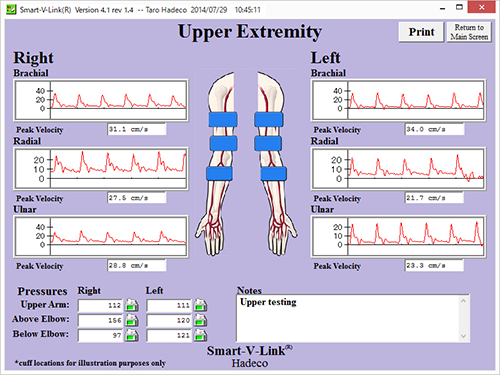

| Upper Extremity Segmental |  |
|

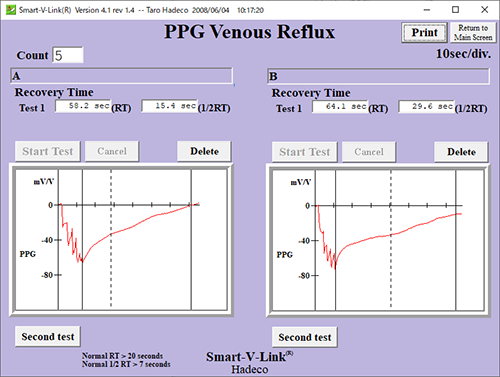

| PPG Venous Reflux |  |
|
| Venous Doppler |  |
|

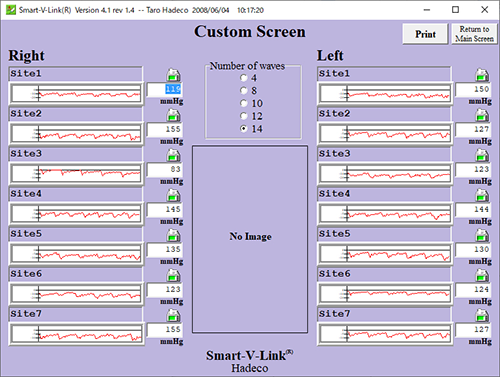

| Custom Screen |  |
Custom screen with suitable names & number of site. Image of your favorite site can be pasted in the center. |
| Individual |  |
|

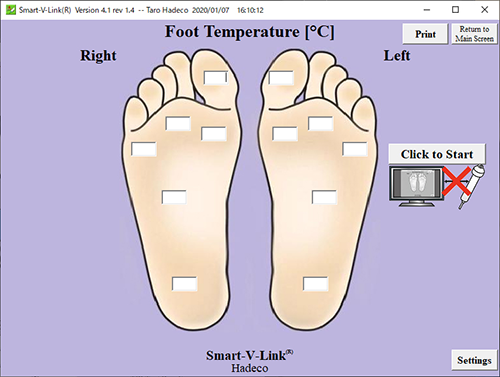

| Foot Temperature |  |
Except EU Member Nations. Only available for the Dopplers*1 supporting the optional temperature probe, TP-02 |
| Pressure Monitor |  |
|
| Download |  |
Only available for Dopplers supporting download capability*2. |

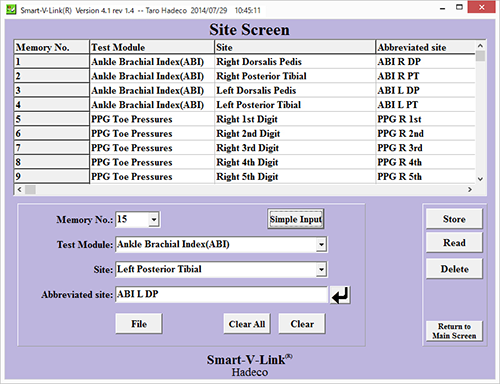

| Site Screen |  |
Only available for the Dopplers*1 supporting site guidance mode. |
*1: Bidop 7, Latest Smartdop 45 and ES-100V3 as of Feb, 2020.
*2: ES-100V3, SD-45, SD-30EX, DVM-4500, Bidop 7 as of Feb, 2020.
Required system
| OS | Windows® 10/11 (Except Tablet PC) |
|---|---|
| CPU clock | Core i3 1.3GHz or more |
| Display | SVGA(800 x 600 dots) or more, 256 colors or more |
| Applicable Doppler | Hadeco Doppler with USB port: – ES-100V3 (Serial Number 15020001 or more), – Smartdop 45 (Serial Number 05030001 or more), – DVM-4500 (Serial Number 12080001 or more), – Bidop 7 as of Feb. 2020 |
| Interface | Special USB cable |
| Install media | USB Flash Memory |
<Note>
USB flash memory with the V5.0 updater software is available for V4 users. Please contact our local distributor for more details.
